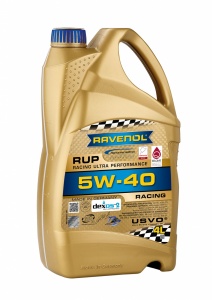

RAVENOL USVO® RUP Racing Ultra Performance 5W-40 Racing Engine Oil is a modern, fully synthetic, fuel-saving, low friction multigrade engine oil formulated using the latest tungsten additives together with USVO technology, especially developed for motorsport applications. It has full OEM approval from Mercedes-Benz, Volkswagen, Renault, BMW, GM and Porsche. This oil is not only impressive as a result of its low sulphate ash content but also offers reduced HTHS viscosity for measurable fuel savings, even when driven hard. It therefore not only reduces the amount of fuel carried (and therefore weight) but also contributes to reducing emissions and protecting the environment. The incredibly low shear rate of RAVENOL USVO® Racing Engine Oils is a major factor in dramatically reducing fuel dilution when running at full throttle.
As a result of the use of special tungsten based additives, RAVENOL USVO RUP 5W-40 Racing Engine Oil provides the ultimate protection when driving on the limit. It utilizes the positive properties of tungsten to smooth the surface structure of the motor, reducing friction and wear, and significantly improving mechanical efficiency and provides a safe layer of lubrication, even at very high operating temperatures. Extensive protection against corrosion (oxidation) and foaming.
Recommended for modern engines used in circuit racing.
Please Note: To guarantee optimal engine performance, avoid mixing with other synthetic or mineral lubricants.
Specifications:
OEM Approvals:
Meets/ Exceeds Requirements: - Ford WSS-M2C917-A
- Mercedes-Benz MB 226.5
- Porsche C40
- VW 502 00
- VW 505 00
- VW 505 01
Characteristics:
RAVENOL USVO RUP 5W-40 Racing Engine Oil offers:
- Ultra-modern fully synthetic racing engine oil with special molybdenum and tungsten additives
- Safe lubricating layer at very high operating temperatures
- High HTHS value, extreme shear stability
- Very stable and excellent viscosity behaviour
- Very low evaporation tendency
- Very good cold start characteristics
- Very good detergent and dispersant characteristics
- Good protection against corrosion and foam formation
Technical Product Data
Property | Unit | Data | Audit |
Density at 20 °C | kg/m³ | 846,0 | EN ISO 12185 |
Colour | | gelbbraun | VISUELL |
Viscosity at 100 °C | mm²/s | 14,3 | DIN 51562-1 |
Viscosity at 40 °C | mm²/s | 87,5 | DIN 51562-1 |
Viscosity Index VI | | 169 | DIN ISO 2909 |
HTHS Viscosity at 150 °C | mPa*s | 3,9 | ASTM D5481 |
CCS Viscosity at -30 °C | mPa*s | 4510 | ASTM D5293 |
Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 21.300 | ASTM D4684 |
Pourpoint | °C | -51 | DIN ISO 3016 |
Noack Volatility | % M/M | 6,0 | DIN 51581 |
Flashpoint | °C | 244 | DIN EN ISO 2592 |
tbn | mg KOH/g | 8,3 | ASTM D2896 |
Sulphated Ash | %wt. | 0,8 | DIN 51575 |
All indicated data are approximate values and are subject to the commercial fluctuations.
DOWNLOAD PDFSAFETY DATA SHEET
Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
Ravenol has made it their mission to master the technological challenges of the future of lubricants and have therefore developed the ultimate in automotive lubrication technology......USVO®
What is USVO® technology?
Lubricant requirements for modern vehicles are becoming increasingly demanding, with unwanted changes in viscosity quickly causing serious problems. To counter this, Ravenol has developed the USVO® lubricant technology to provide a very high viscosity stability at both high and low temperatures. To achieve this only the highest quality fully synthetic base oils and additives are used. USVO® stands for Ultra Strong Viscosity Oil.
THANKS TO THE IDEAL COMBINATION OF COMPONENTS, RAVENOL HAS CREATED FORMULATIONS WITH THE FOLLOWING BENEFITS:
• EXCELLENT HIGH TEMPERATURE VISCOSITY (HTHS AT 150 °C)Barely any viscosity loss during operation, which means that the lubricant film is permanently maintained during operation.
• EXCELLENT PERFORMANCE AT LOW TEMPERATURES (CCS AT -30 °C)The lubricant is always flows freely so that direct engine lubrication is guaranteed even for cold starts.
• VERY GOOD OXIDATION STABILITYOxidation stable lubricants have increased resistance against reacting with oxygen and temperatures. This increases the lubricant service life, which permanently prevents deposits (sludge) and maintains the lubrication properties.
• VERY LOW LOSSES DUE TO EVAPORATIONOnly a few components of the oil evaporate at the high operating temperatures. As a result, the engine oil level drops only slightly and the environment is not additionally polluted by the gases.
• HIGH VISCOSITY INDEXA high viscosity index illustrates a reduced temperature-dependent viscosity change compared to a low viscosity index.
• VERY LOW POUR POINTThe pour point is the lowest temperature above which an oil is liquid. As a result, lubrication is guaranteed, even at the lowest temperatures. Even if we never get temperatures this low in the UK, the lower the pour point, the better the quality of the lubricant.
• LESS FRICTION
A dramatic reduction in friction compared to conventional oils releases more power from your engine
| PROPERTIES OF THE RAVENOL-USVO® QUALITIES Thanks to their technical properties, RAVENOL USVO® lubricants optimise engine performance and noticeably reduce fuel consumption at the same time. This benefits the environment, as lower fuel consumption leads to reduced CO2 emissions. CCS = Low temperature viscosity PP = Temperature of loss of fluidity MRV = Low temperature viscosity when pumping through SSI = Mechanical shear strength Further detailed information over RAVENOL USVO® Technology can be found HERE. | |
