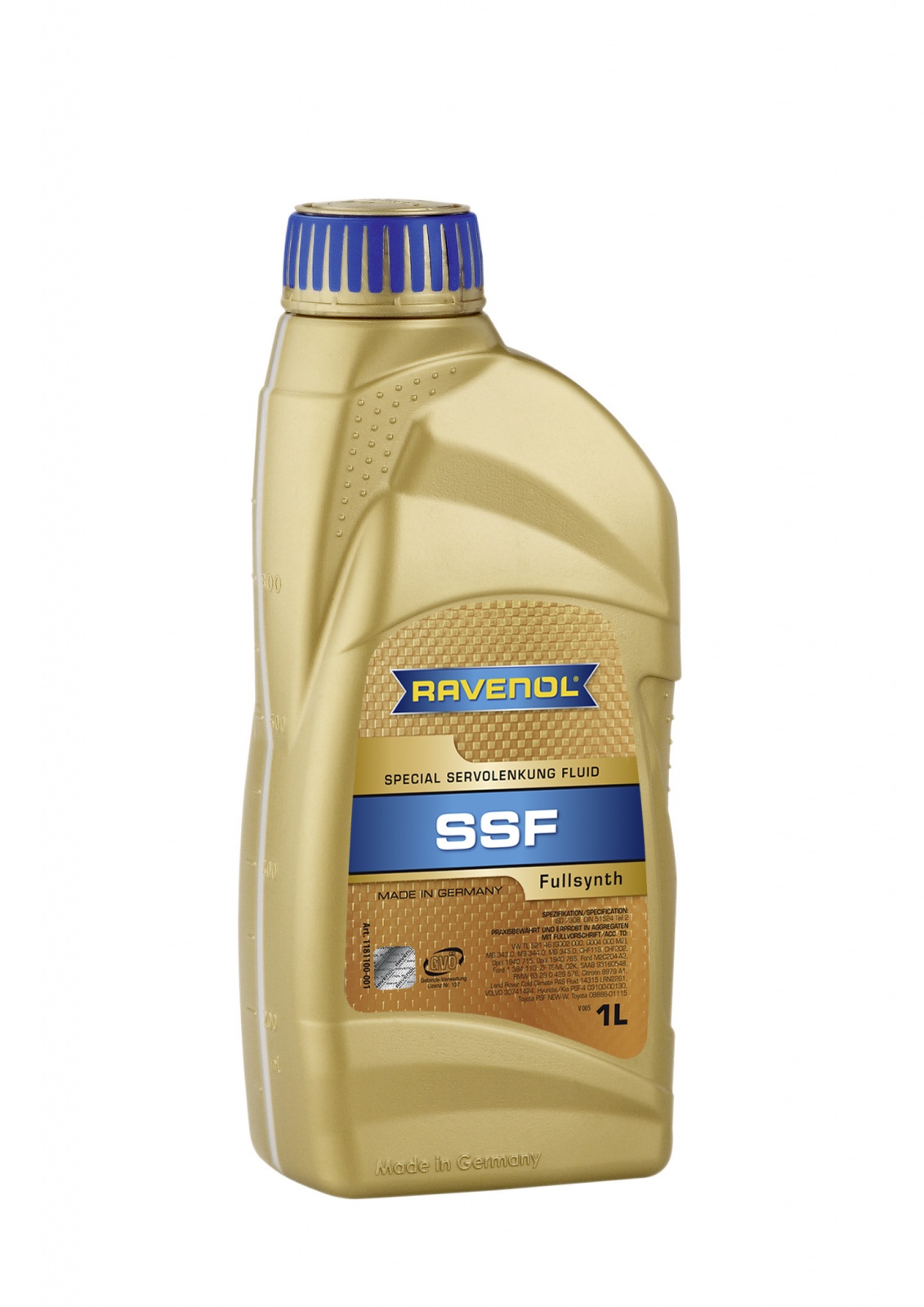

RAVENOL SSF Power Steering Fluid is a special fully synthetic power steering fluid formulated using the latest additive technology. It is designed for use from -40°C to +100°C and is therefore recommended for the latest developments in the vehicle market. As a high performance central hydraulic fluid, it fulfils the requirements of Volkswagen Specification TL 521 46 for Volkswagen, Audi, Seat and Skoda applications, but is suitable for many other vehicles, as detailed below. It more than fulfils the requirements of Land Rover Power Steering Fluid, STC 50519 PAS Fluid A (Active Cornering Enhancement).
Application
RAVENOL SSF Power Steering Fluid can be used in power steering, rear axle steering, hydro-pneumatic suspension, shock absorbers, for active damping and engine protection, for hydrostatic fan drive, alternator and air conditioning, for stability and traction control systems (ABS/ ASR/ ASC), central locking, for electro-hydraulic convertible top control, and hydraulic brake boosters. Also recommended for Porsche Dynamic Chassis Control (PDCC).
Specifications
- ISO 7308
- DIN 51524 Part 2
Meets/ Exceeds Requirements
- BMW 83 29 0 429 576
- CHF11S
- CHF202
- Citroën 9979 A1
- DTFR 31B120 (MB 345.0)
- Ford 1 384 110
- Ford M2C204-A2
- Hyundai/Kia PSF-4 03100-00130
- Land Rover Cold Climate PAS Fluid 14315 LRN2261
- MB 343.0
- MB 344.0
- MB 345.0
- Opel 19 40 715
- Opel 19 40 766
- SAAB 93160548
- Toyota 08886-01115
- Toyota PSF NEW-W
- VOLVO 30741424
- VW G002000
- VW G004000 M2
- VW TL 52146
- ZF TE-ML 02K
Characteristics
RAVENOL SSF Power Steering Fluid offers:
- Extremely low pour point
- Improved viscosity and coefficient of friction behaviour
- Exceptional protection and fluidity even at lowest temperatures
- Excellent thermal stability
- Improved EP-characteristics
- Very low foaming tendency
- Compatible with all types of sealing materials
- Enhanced protection against corrosion
Technical Product Data
| Property | Unit | Data | Audit |
| Density at 20 °C | kg/m³ | 829,0 | EN ISO 12185 |
| Colour | | grün | VISUELL |
| Viscosity at 100 °C | mm²/s | 6,6 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 19,7 | DIN 51562-1 |
| Viscosity at -40 °C | mm²/s | 900 | ASTM D445 |
| Viscosity Index VI | | 333 | DIN ISO 2909 |
| Brookfield Viscosity at -40 °C | mPa*s | 980 | ASTM D2983 |
| Pourpoint | °C | -55 | DIN ISO 3016 |
| Flashpoint | °C | 166 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
DOWNLOAD PDFSAFETY DATA SHEET
Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
