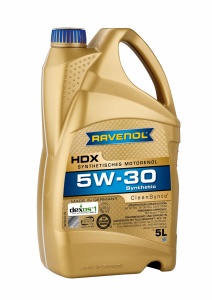

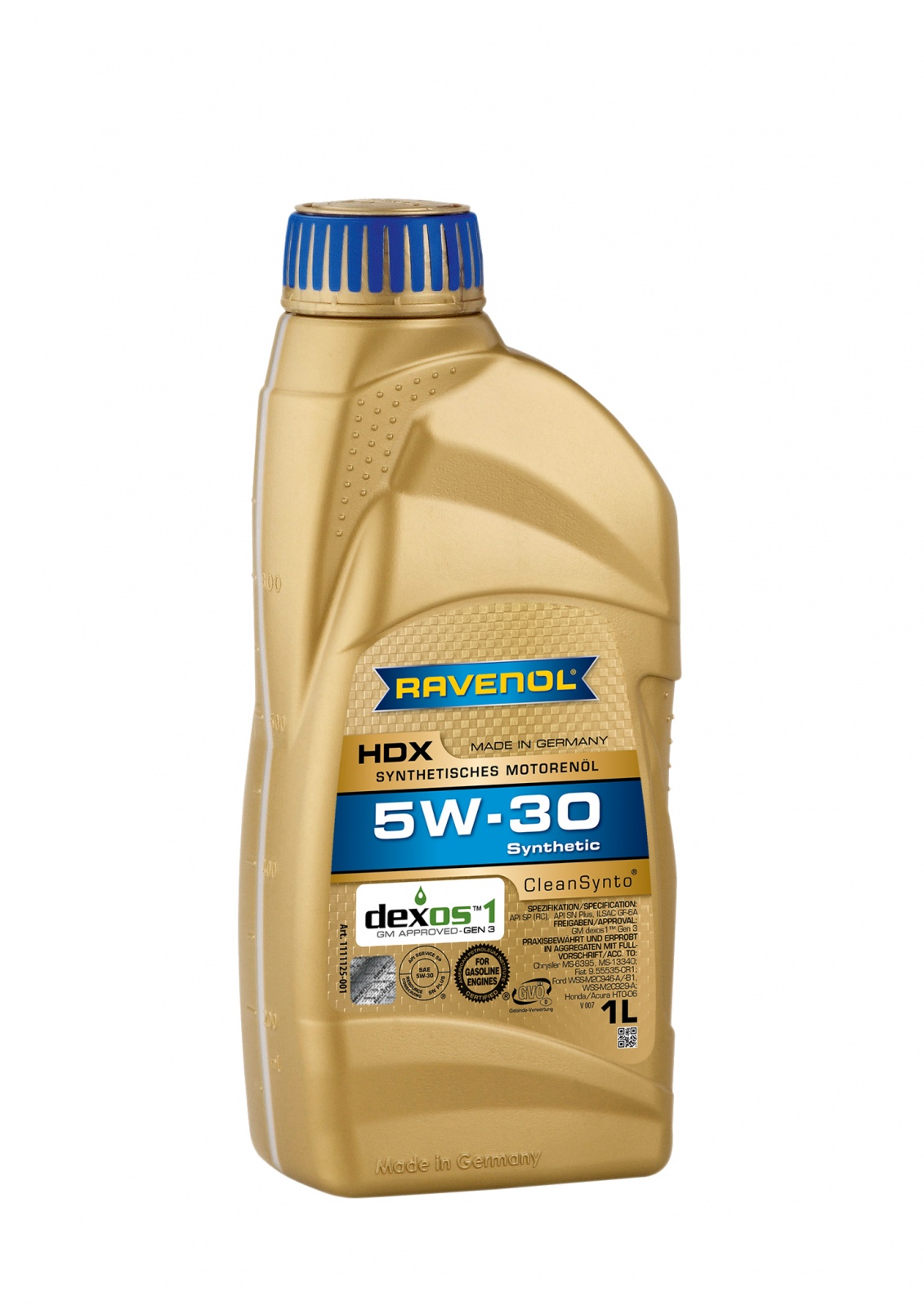

RAVENOL HDX 5W-30 Engine Oil is a synthetic, low-friction engine oil with CleanSynto® technology for car petrol engines, with and without turbocharging and direct injection, such as Turbo-GDI and direct injection.
With its new formulation, RAVENOL HDX 5W-30 Engine Oil provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. It achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase. Because of a considerable fuel saving it contributes to protect the environment by reducing emissions.
RAVENOL HDX 5W-30 Engine Oil minimizes friction, wear and fuel consumption with excellent cold start characteristics and helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition) which can help avoid engine damage.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Notes:
RAVENOL HDX 5W-30 Engine Oil is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos1 specification for modern GM gasoline-engined vehicles under all operating conditions.
Approvals:
- API SN PLUS, API SP (Resource Conserving), ILSAC GF-6A
- GM dexos2™ Gen3 (License No. D335ABDJ081)
Recommendations:
- Chrysler MS-6395
- Chrysler MS-13340
- Fiat 9.55535-CR1
- Ford WSS-M2C929-A
- Ford WSS-M2C946-A
- Ford WSS-M2C946-B1
- Honda/Acura HTO-06
- Ford WSS-M2C961-A1
Characteristics:
- Fuel savings in partial and full load operation
- Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions.
- Excellent cold-start properties even at low temperatures below -25°C.
- A safe lubricating film at high operating temperatures.
- Low evaporation tendency, thus low oil consumption.
- No oil-based deposits in combustion chambers, in the piston ring zone and on valves.
- Neutrality towards sealing materials.
- Extended oil change intervals protect natural resources.
Technical Product Data
Technical Product Data
| Property | Unit | Data | Audit |
| Density at 20 °C | kg/m³ | 844,0 | EN ISO 12185 |
| Colour | | gelbbraun | VISUELL |
| Viscosity at 100 °C | mm²/s | 10,8 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 59,8 | DIN 51562-1 |
| Viscosity Index VI | | 173 | DIN ISO 2909 |
| HTHS Viscosity at 150 °C | mPa*s | 3,4 | ASTM D5481 |
| CCS Viscosity at -30 °C | mPa*s | 3630 | ASTM D5293 |
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 13.500 | ASTM D4684 |
| Pourpoint | °C | -45 | DIN ISO 3016 |
| Noack Volatility | % M/M | 8,1 | ASTM D5800 |
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
| tbn | mg KOH/g | 7,8 | ASTM D2896 |
| Sulphated Ash | %wt. | 0,86 | DIN 51575 |
All indicated data are approximate values and are subject to the commercial fluctuations.
DOWNLOAD PDFSAFETY DATA SHEET
Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
