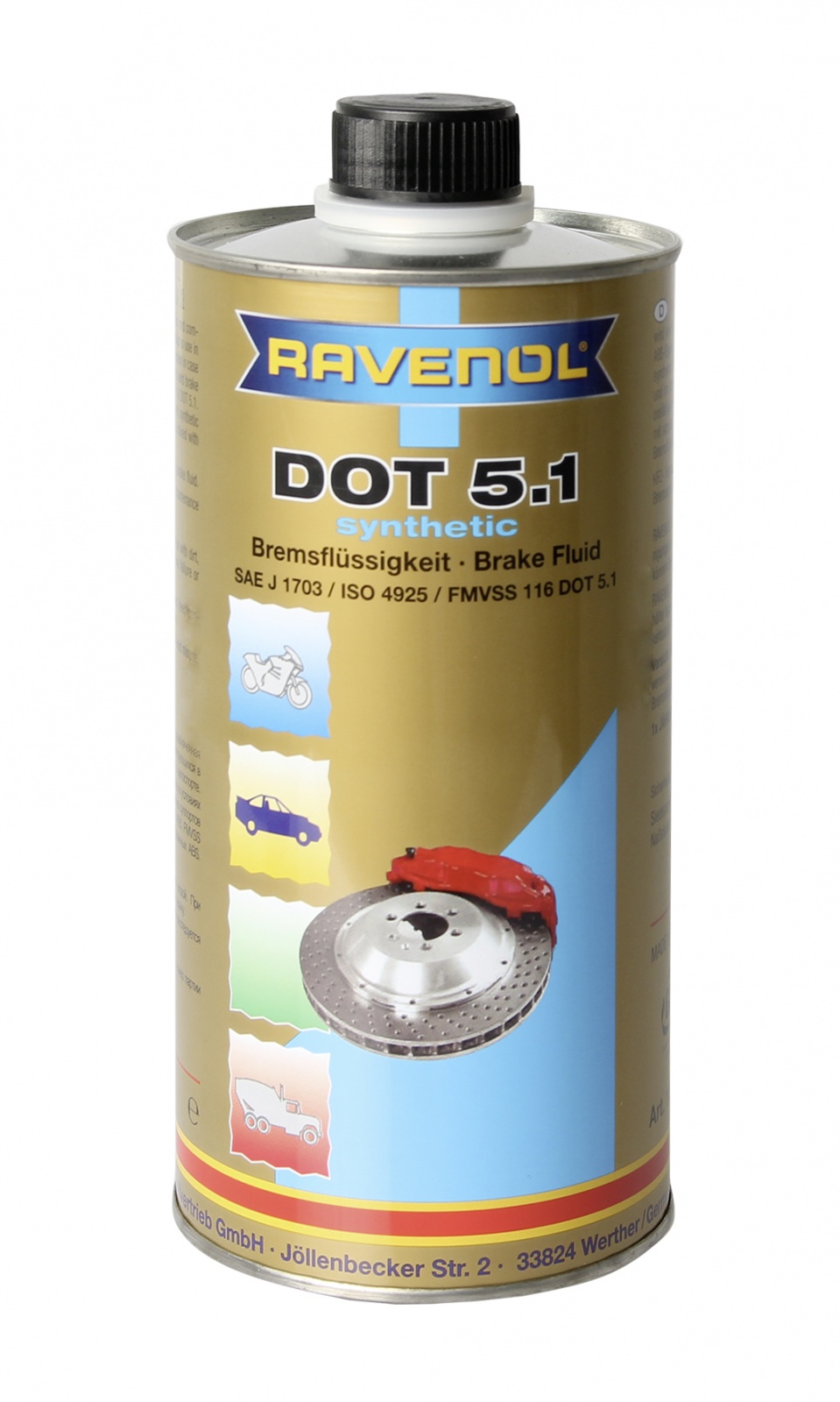

RAVENOL DOT 5.1 Brake Fluid is a universal brake fluid with optimal ABS characteristics for use in all vehicles requiring a DOT 5.1 specification. It exceeds the international specifications SAE J1704 and ISO 4925, and the safety regulations FMVSS 116 DOT 5.1 from the USA.
Application
RAVENOL DOT 5.1 Brake Fluid can be used in all vehicles for which the DOT 5.1 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids and is miscible with all known brake fluids of the same specification.
Specifications
- SAE J1704
- ISO 4925 Class 5.1
- FMVSS 116 DOT 5.1
Characteristics
RAVENOL DOT 5.1 Brake Fluid offers:
- Optimum ABS characteristics
- Chemical stability
- Best lubrication efficiency
- Neutral behaviour against brake parts
- Low viscosity at cold temperatures
- Miscible with all brake fluids of the same specification
Technical Product Data
| Property | Unit | Data | Audit |
| Colour | | hellgelb | VISUELL |
| Sediment | % | <0,05 | FMVSS 116 |
| Aluminium | Δ mg/cm² | -0,01 | FMVSS 116 |
| SBR at 120 °C | Ø Δ, mm | +0,72 | FMVSS 116 |
| SBR at 70 °C | Ø Δ, mm | +0,44 | FMVSS 116 |
| Boiling point | °C | 269 | FMVSS 116 |
| Steel | Δ mg/cm² | -0.004 | FMVSS 116 |
| Hardness Change | °IRHD | -6 | FMVSS 116 |
| Rubber Diameter Change | | +0,03 | FMVSS 116 |
| Evaporation | %w/w | 68 | FMVSS 116 |
| Tinned Iron | Δ mg/cm² | -0,01 | FMVSS 116 |
| Viscosity at 100 °C | mPa*s | 2,16 | ASTM D445 |
| Viscosity at -40 °C | cSt | 810 | ASTM D445 |
| Water Tolerance at +60 °C | | klar, keine Ablagerungen | FMVSS 116 |
| Water Tolerance at -40 °C | | klar, 2s | FMVSS 116 |
| Water content | mg/kg | 0,10 | DIN 51777-1 |
| Zinc | Δ mg/cm² | +0,03 | FMVSS 116 |
| Chemical Stability | °C | +1,5 | FMVSS 116 |
| Density at 20 °C | kg/m³ | 1069,0 | EN ISO 12185 |
| EPDM at 120 °C | Δ Härte | -3 | FMVSS 116 |
| EPDM at 70 °C (as required by SAE J1703) | Δ Härte | -2 | FMVSS 116 |
| Appearance | | i.O. | FMVSS 116 |
| Fluidity & Appearance at -40 °C | | i.O., 2s | FMVSS 116 |
| Fluidity & Appearance at -50 °C | | i.O., 4s | FMVSS 116 |
| Cast Iron | Δ mg/cm² | -0,01 | FMVSS 116 |
| High Temperature Stability | °C | 0 | FMVSS 116 |
| Copper | Δ mg/cm² | -0,03 | FMVSS 116 |
| Brass | Δ mg/cm² | -0,05 | FMVSS 116 |
| Compatibility at +60 °C | | klar, keine Ablagerungen | FMVSS 116 |
| Compatibility at -40 °C | | klar, keine Phasentrennung | FMVSS 116 |
| Wet Equilibrium Reflux Boiling Point | °C | 187 | FMVSS 116 |
| Natural at 70 °C (as required by ISO 4925) | Ø Δ, mm | +0,42 | FMVSS 116 |
| pH - value | | 7,33 | FMVSS 116 |
All indicated data are approximate values and are subject to the commercial fluctuations.
DOWNLOAD PDFSAFETY DATA SHEET
Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
