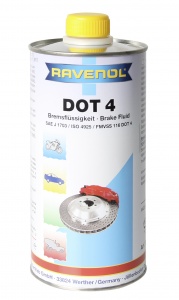

RAVENOL DOT 4 Brake Fluid is a universal brake fluid with optimal ABS characteristics for use in all vehicles requiring a DOT 4 specification. It exceeds the international specifications SAE J1703 and ISO 4925, and the safety regulations FMVSS 116, DOT 3 and DOT 4 from the USA .
Application
As well as vehicles where DOT 4 specification for brake fluid is required, RAVENOL DOT 4 Brake Fluid is also suitable for all hydraulic brake systems with synthetic fluids, and is miscible with all known brake fluids of the same specification.
Specifications
- SAE J1704,
- ISO 4925 Class 4
- FMVSS 116 DOT4
Characteristics
RAVENOL DOT 4 Brake Fluid offers:
- Optimum ABS characteristics.
- Chemical stability.
- Best lubrication efficiency.
- Neutral behaviour regarding brake parts.
- Low viscosity at low temperatures.
- Miscible with all brake fluids of the same specifications.
Technical Product Data
| Property | Unit | Data | Audit |
| Density at 20 °C | kg/m³ | 1052,0 | EN ISO 12185 |
| Colour | | hellgelb | VISUELL |
| Viscosity at 100 °C | mPa*s | 2,41 | ASTM D445 |
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
| Boiling point | °C | 271 | FMVSS 116 |
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
| High Temperature Stability | °C | -1 | FMVSS 116 |
| Chemical Stability | °C | +1 | FMVSS 116 |
| Evaporation | %w/w | 61 | FMVSS 116 |
| Fluidity & Appearance at -40 °C | | i.O., 4s | FMVSS 116 |
| Fluidity & Appearance at -50 °C | | i.O., 8s | FMVSS 116 |
| Water Tolerance at -40 °C | | klar, 3s | FMVSS 116 |
| Water Tolerance at +60 °C | | klar, keine Ablagerungen | FMVSS 116 |
| Compatibility at -40 °C | | klar, keine Phasentrennung | FMVSS 116 |
| Compatibility at +60 °C | | klar, keine Ablagerungen | FMVSS 116 |
| Water content | mg/kg | <0,2 | DIN 51777-1 |
| Tinned Iron | Δ mg/cm² | +0,04 | FMVSS 116 |
| Steel | Δ mg/cm² | -0.01 | FMVSS 116 |
| Aluminium | Δ mg/cm² | +0,02 | FMVSS 116 |
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
| Brass | Δ mg/cm² | -0,08 | FMVSS 116 |
| Copper | Δ mg/cm² | -0,05 | FMVSS 116 |
| Zinc | Δ mg/cm² | +0,01 | FMVSS 116 |
| Sediment | % | <0,05 | FMVSS 116 |
| pH - value | | 8,20 | FMVSS 116 |
| Rubber Diameter Change | | +0,16 | FMVSS 116 |
| Hardness Change | °IRHD | -4 | FMVSS 116 |
| Appearance | | i.O. | FMVSS 116 |
| SBR at 70 °C | Ø Δ, mm | +0,56 | FMVSS 116 |
| SBR at 120 °C | Ø Δ, mm | +0,73 | FMVSS 116 |
| EPDM at 70 °C (as required by SAE J1703) | Δ Härte | -2 | FMVSS 116 |
| EPDM at 120 °C | Δ Härte | -2 | FMVSS 116 |
| Natural at 70 °C (as required by ISO 4925) | Ø Δ, mm | +0,38 | FMVSS 116 |
All indicated data are approximate values and are subject to the commercial fluctuations.
