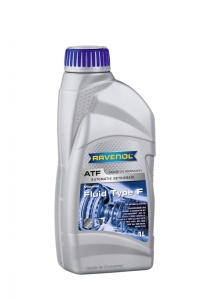

RAVENOL ATF Fluid Type F Transmission Fluid is a high quality universal transmission fluid designed to meet the special requirements of Ford, Borg-Warner and Volvo, as well as for other automatic fluid couplings, torque converters, servo steering systems and hydrostatic and hydrodynamic systems.
The special formulation of refined base oils together with special additives and inhibitors ensures smooth and efficient operation of the transmission.
Meets/ Exceeds Requirements - Ford Type M2C-33F
- Ford Type M2C-33G
- Ford Motorcraft XT-1-QF
- Volvo 97330
Characteristics
RAVENOL ATF Fluid Type F Transmission Fluid offers:
- A universal application, thereby minimizing confusion and simplified stocking.
- Good lubricating properties even at low temperatures in winter.
- Stable lubricating film even under extreme loads
- Excellent wear protection throughout service period
- Very good viscosity-temperature behavior.
- High thermal capacity.
- Easily miscible with all brand ATF's
- Very low foaming tendency, even in the toughest conditions.
- Reliable protection against wear, sludge, corrosion and sticking.
- FZG test: Reaches failure load stage 12 before and after shearing.
Technical Product Data
| Property | Unit | Data | Audit |
| Density at 20 °C | kg/m³ | 848,0 | EN ISO 12185 |
| Colour | | rot | VISUELL |
| Viscosity at 100 °C | mm²/s | 7,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 34,3 | DIN 51562-1 |
| Viscosity Index VI | | 185 | DIN ISO 2909 |
| Pourpoint | °C | -45 | DIN ISO 3016 |
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
DOWNLOAD PDFSAFETY DATA SHEET
Please note that the technical data is correct at the time of writing, Ravenol are continuously updating product specifications. Therefore, please refer to the 'Download PDF' and 'Safety Data sheet' links above for up-to-date information.
